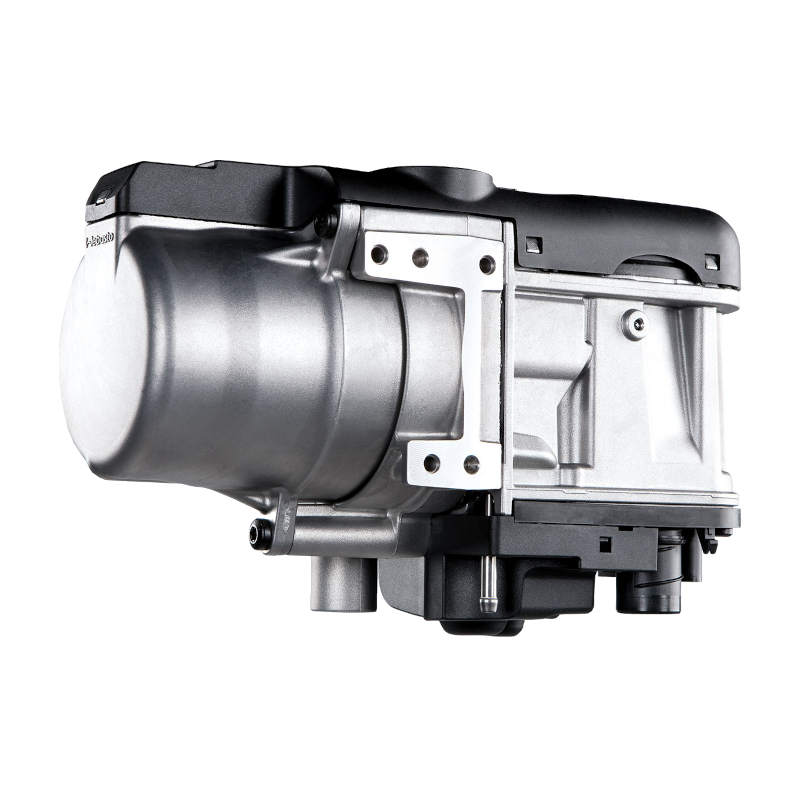

Webasto's latest model water heater is the smallest and quietest water heater to date. with a completely new heater body with rotatable water hose connections and a remote mounted circulation pump, this unit is extremely versatile in its mounting possibilities.
Efficiency and low fuel consumption is achieved by the new variable output, ensuring the heater is always running at its optimum efficiency. The new water circulation pump also has a variable flow rate and is controlled by the heaters ECU to deliver a pulsed coolant flow over the heat exchanger, giving better transfer of heat to the water by lowering the volume flow. The new DP42 fuel pump, along with the air fan motor, is also PWM technology controlled by the heater ECU meaning that the 'stroke' of the pump is extremely quiet in its operation. In fact, this is the quietest water heater Webasto have made to date.

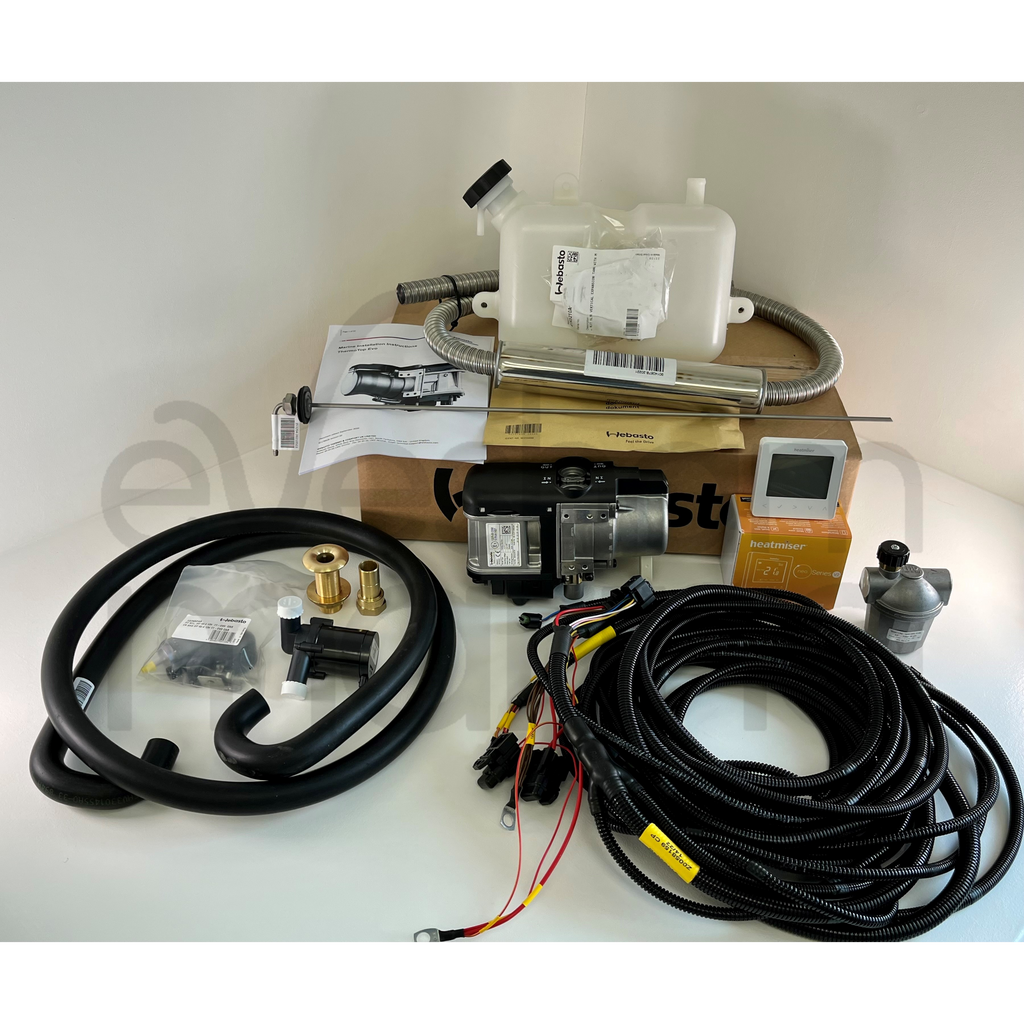

This kit includes the following:
- Webasto Thermo Top Evo 5kW 12V Water Heater
- Water Circulation Pump
- DP42 Fuel Pump
- 7-Day Heatmiser Timer
- Fuel Pick-up Pipe
- Marine Electrical harness c/w fuse holders and fuses
- 5 Ltr Expansion Header tank
- Stainless steel marine exhaust silencer
- Exhaust lagging
- On/Off Switch
- Bronze exhaust skin fitting with clamps & fixings
- Copper Fuel pipe
- Marine fuel filter kit c/w shut off tap and mounting bracket
- All necessary clips and screws required for installation.
- Full installation manual for the heater kit.
- Webasto manufacturers warranty
Thermo Top Evo Installation Manual
Thermo Top Evo Workshop Manual
